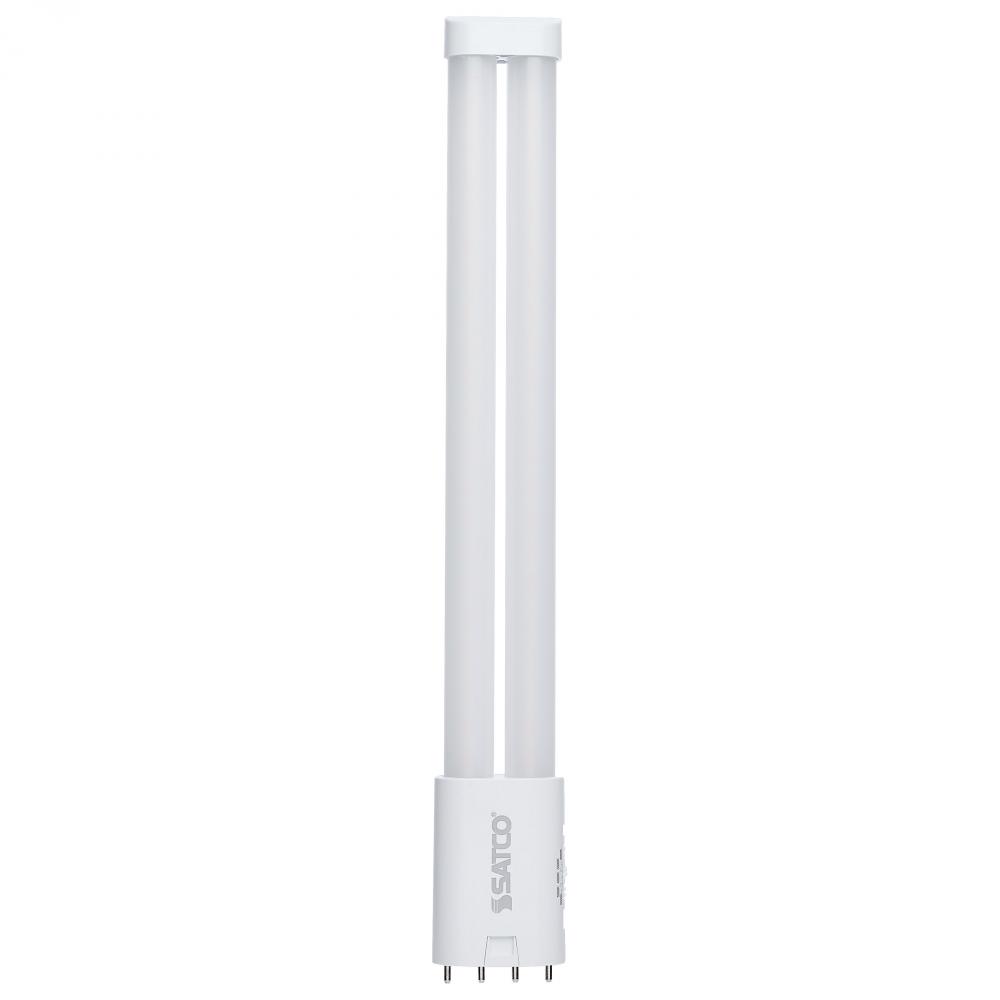

10 Watt PLL LED; 2G11 Base; 30K/35K/40K/50K/65K CCT Selectable; Ballast Bypass; 120-277 Volt (S18421)
by Satco Products Inc.
10 Watt PLL LED; 2G11 Base; 30K/35K/40K/50K/65K CCT Selectable; Ballast Bypass; 120-277 Volt
Product Specification
Item #
S18421
Dimensions
Width: 1.72"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
PL-L
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
3000K/3500K/4000K/5000K/6500K
Bulb Shape
T5
Diameter
1.72
EA Length
13.98
Harmonized Codes
8539.52.0091
Length
12.7
Lumens
1180L/1200L/1250L/1250L/1250L
Shap Carton Width
1.89
Ship Carton Height
0.9399999999999999
Ship Weight
0.31
Warranty
5 Year Limited - 10 hr per day
Weight
0.22
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
115
Bulb ANSI Base
2G11
Bulb Base
2G11
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.0144
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Soft White to Daylight
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
118.00/120.00/125.00 LPW
Enclosed Fixture Use
Yes
FCC Compliant
Yes
Feature 1
5 CCT Selectable
Feature 2
Type B Ballast Bypass
Feature 3
Suitable for Use in Enclosed Fixtures
Feature 4
Frosted PET Glass Tubing
Feature 5
2G11 Pin Base
Feature 6
Damp location rated
Feature 7
50,000 Hour Functional Life
Feature 8
5 Year Warranty
Flourescent Equivalent
24W
Housing Color
White
Indoor Outdoor
Indoor
Installation Notes
Not for use in vapor tight fixtures.
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Leg Spacing
0.43
Location Rating
Damp
Long Description
SATCO NUVO's innovative S18421 10W PLL lamp offers an easy solution for upgrading older luminaires to the energy-efficient benefits of LED technology. By utilizing a Type B ballast bypass, this lamp will replace outdated, less efficient CFL tubes, cons
Material
Glass
NSF Approved
Yes
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's innovative PLL lamps offer an easy solution for upgrading older luminaires to the energy-efficient benefits of LED technology. By utilizing a Type B ballast bypass, these lamps replace outdated, less efficient CFL tubes, consuming less ene
SDS class
LED_Lamp
Shatter Proof Text
PET Coated
Short Description
10PLL/LED/5CCT/BP
Style
Utility
Surge Protection
Built-in-surge protection - 0.5KV
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
20%
Wattage Selectable
No
Watts
10W
Manufactured By
Satco Products Inc.
Other Details:
- Country of Origin- China
Finish Family
Additional options that would change other selections
Call for Price
BASE PRICE:
$
22
23
/
/ 1
($22.23 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer may be Out Of Stock.
