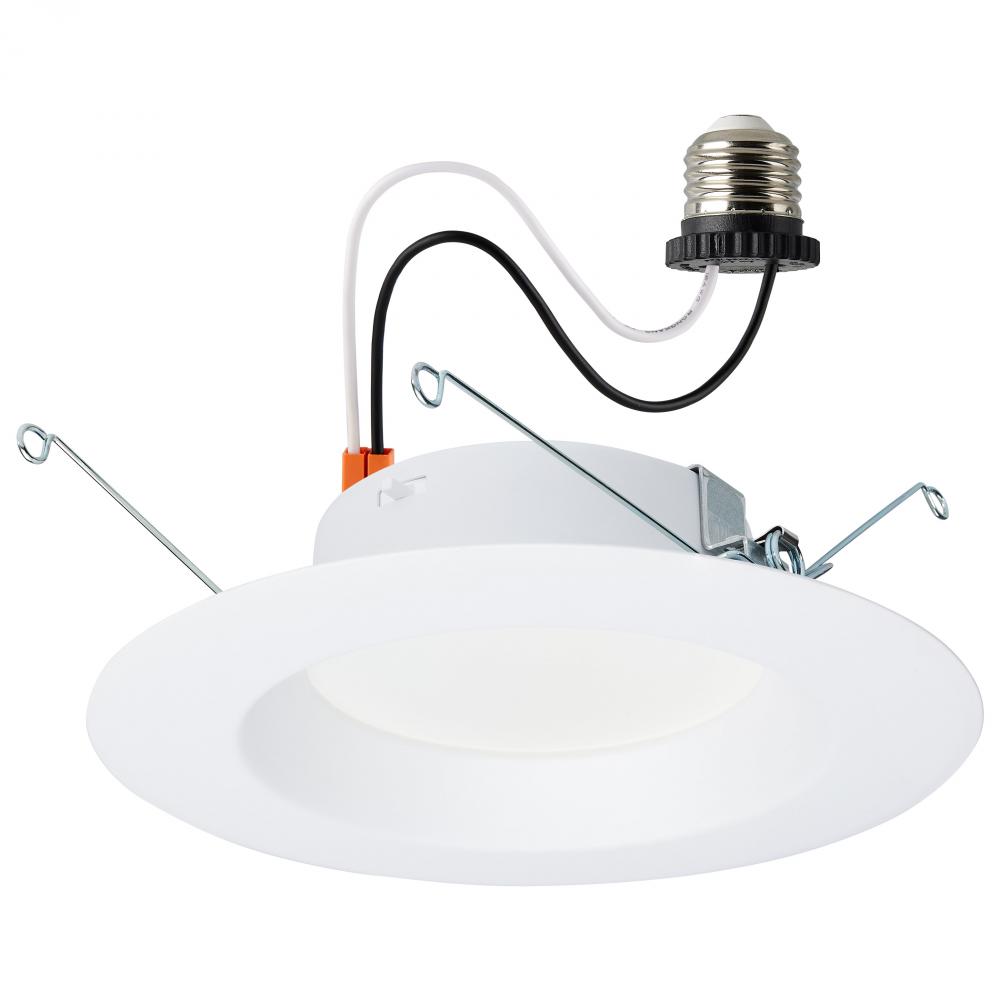

12.5 Watt LED High Lumen Downlight Retrofit; 5-6 Inch; 27K/30K/35K/40K/50K CCT Selectable; 120 (S11646)
by Satco Products Inc.
12.5 Watt LED High Lumen Downlight Retrofit; 5-6 Inch; 27K/30K/35K/40K/50K CCT Selectable; 120 Volts; Dimmable; White Finish
Product Specification
Item #
S11646
Dimensions
Height: 1.97"
Width: 7.36"
Additional product details
Category
Recessed Ltg.
Subcategory
Recessed Lighting Trims
Finish
White
Option
Energy Star
, LED
, Prop 65
Category
Recessed
Sub Category
Retrofits
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White to Natural Light
Diameter
7.36
Dimmable
Yes-Dimmable
Each Height
8.07
Each Length
8.07
Each Width
2.76
Lumens
1100L
Tariff Code
8539.52.0091
Warranty
5 Year Limited - Fixtures
Air Tight
Yes
Amps
0.104A
ANSI Base
E26 Adapter
Beam Angle
100
CA Prop-65
Lead
Can Size
5-6 in.
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
5.36 in. Cutout
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 10 percent
Dimming Type
Phase cut
Each Cube
0.104
Each Quantity
1
Efficacy
88.00 LPW
ES Category
Downlight Solid State Retrofit
ES Unique ID
ESID-3845045
FCC Compliant
Yes
Feature 1
CCT Selectable
Feature 2
High Lumen Output 90 CRI for High Quality Lighting
Feature 3
Round, Smooth Baffle with White Trim
Feature 4
E26 Adapter Included
Feature 5
T20 and T24 Compliant
Feature 6
Aluminum Construction with Polycarbonate Lens
Feature 7
50,000 Hour Functional Life
Finish Family
White
IC Rated
Yes
Incandescent Equivalent
75W
Indoor Outdoor
Indoor
JA8 Compliant
Yes
Lens Finish
Matte Frosted
Lens Material
Polycarbonate (PC)
Long Description
SATCO NUVO's LED CCT Selectable 5-6 inch High Lumen Retrofit Downlight, S11646, will elevate the lighting in any space. Designed with impeccable 90 CRI color rendering, you can make your space brighter while saving energy with this 1,100 high lumen LED
Material
Aluminum
Minimum Compartment Size
For the 5 in. Recessed Luminaire: Dia: 5.38, Height: 7.5; For the 6 in. Recessed Luminaire: Dia: 6 In, Height: 7.5 in
Mounting Procedure
Recessed Retrofit
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
R9 Value
55
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's LED CCT Selectable 5-6 inch High Lumen Retrofit Downlight will elevate the lighting in any space. Designed with impeccable 90 CRI color rendering, you can make your space brighter while saving energy with this 1,100 high lumen LED downligh
Safety Listing
cULus - Certified;cULus - Classified;cRUus - Recognized Component
SDS class
LED_Fixture
Short Description
12.5WLED/DLR/5-6/CCT-SEL/RD/WH
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
Yes
Title 24 Compliant
Yes
Total Harmonic Distortion
41.4%
Trim Color
White
Wattage Selectable
No
Weight Lb.
0.6
Manufactured By
Satco Products Inc.
