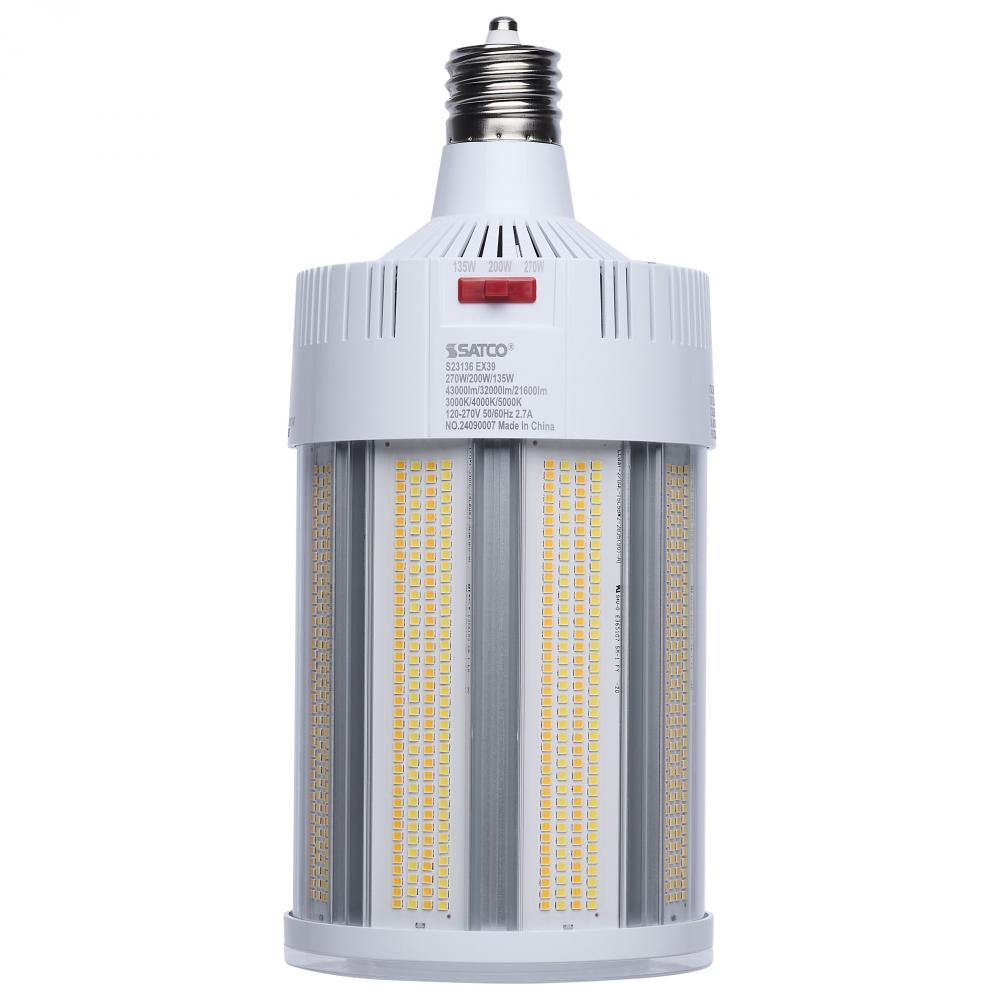

270/200/135 Watt; 30K/40K/50K CCT; Field Selectable LED; Corncob; Mogul Extended Base; 120-277 (S23136)
by Satco Products Inc.
270/200/135 Watt; 30K/40K/50K CCT; Field Selectable LED; Corncob; Mogul Extended Base; 120-277 Ranged Voltage; 600 Watt HID Replacement
Product Specification
Item #
S23136
Dimensions
Width: 5.60"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
HID Replacements
Volts
120V-277V
Bulb Dimmable
Yes-Dimmable
Bulb Hours
50000
Bulb Kelvin
3000K/4000K/5000K
Bulb Shape
Corncob
Diameter
5.6
EA Length
5.91
Harmonized Codes
8539.52.0091
Length
12.3
Lumens
45330L/34581L/24450L
Shap Carton Width
5.91
Ship Carton Height
14.17
Ship Weight
3.5
Warranty
5 Year Limited - High Lumen Hi-Pro
Weight
3.56
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
170.9
Bulb ANSI Base
EX39
Bulb Base
Mogul Extended
Bulb Finish
White
Burning Position
Universal
Carton Cubic Feet
0.2864
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Soft White to Natural Light
Country Of Origin
China
CRI
80+
Dimmable Function
Only dimmable through wattage selection switch on lamp
Dimming Type
Step Dimming
DLC Approved
Yes
DLC Classification
Standard
DLC ID
S-V5JZ45
DLC Primary Use
Replacement Lamps for High-Bay Luminaires (Type B)
Efficacy
167.89/172.91/181.11 LPW
Enclosed Fixture Use
Yes
FCC Compliant
Yes
Feature 1
CCT and Wattage Selectable
Feature 10
5 Year Warranty
Feature 2
Range Voltage 120V-277V
Feature 3
Very High Lumen Output
Feature 4
Type B Ballast Bypass
Feature 5
Integrated Active Cooling Fan
Feature 6
Damp location rated
Feature 7
Min Compartment Size 18.50" x 14.96" x 14.96"
Feature 8
6kV Surge Protection
Feature 9
50,000 Hour Functional Life
HID Equivalent
600W
Housing Color
White
Indoor Outdoor
Indoor and Outdoor
Installation Notes
Not for use in vapor tight fixtures.
IP Rating
IP54
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Location Rating
Damp
Long Description
SATCO NUVO's S23136 Hi-Lumen Hi-Pro lamp delivers over 45,000 lumens, replacing metal halide lamps up to 600W with energy-efficient LED performance. Field-selectable wattage and CCT provide versatility, while the extended mogul EX39 base and enclosed f
Material
Aluminum / Polycarbonate (PC)
Minimum Compartment Size
Length: 18.50 in. Width:14.96 in. Height: 14.96 in.
Operating Frequency
60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.99
Quantity In Pack
1
R9 Value
22
RoHS Compliant
Yes
Romance Copy
SATCO NUVO Hi-Lumen Hi-Pro lamps deliver exceptional LED illumination, replacing metal halide lamps from 450W up to 1000W. With a staggering maximum output of over 73,000 lumens, they provide superior brightness while improving energy efficiency and reduci
SDS class
LED_Lamp
Short Description
270W/LED/CCT/100-277V/EX39
Style
Contemporary
Surge Protection
Built-in surge protection - 6KV
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
<20%
Wattage Selectable
Yes
Watts
270W/200W/135W
Manufactured By
Satco Products Inc.
Other Details:
- Country of Origin- China
Finish Family
Additional options that would change other selections
Call for Price
BASE PRICE:
$
354
84
/
/ 1
($354.84 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 234 items available.
