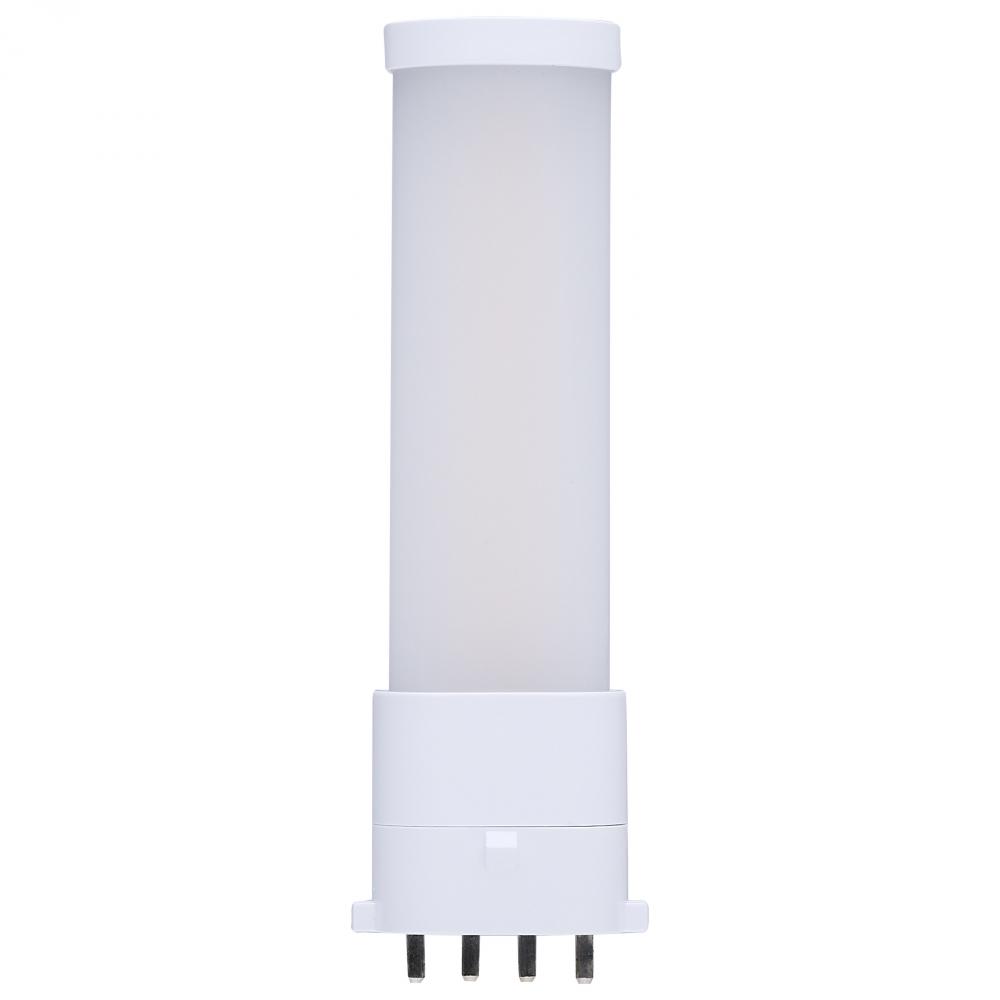

3.5 Watt; 2G7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt (S11555)
by Satco Products Inc.
3.5 Watt; 2G7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt
Product Specification
Item #
S11555
Dimensions
Width: 1.26"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
LED CFL Replacements Pin Based
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
2700K/3000K/3500K/4000K
Bulb Shape
PL
Diameter
1.26
EA Length
1.54
Harmonized Codes
8539.52.0091
Length
4.74
Lumens
380L/390L/400L/410L
Shap Carton Width
0.91
Ship Carton Height
4.84
Ship Weight
0.08
Warranty
5 Year Limited - 10 hr per day
Weight
0.06
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
120
Bulb ANSI Base
2G7
Bulb Base
2G7
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.0039
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm to Cool White
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
108.57/111.43/114.29/117.14 LPW
Enclosed Fixture Use
No
FCC Compliant
Yes
Feature 1
4 CCT Selectable
Feature 2
Type B Ballast Bypass
Feature 3
120 Degree Beam Spread
Feature 4
2G7 Lamp Base
Feature 5
Damp Location Rated
Feature 6
50,000 Hour Functional Life
Feature 7
5 Year Warranty
Feature 8
Single-Sided Illumination
Flourescent Equivalent
5W/7W/9W
Housing Color
White
Indoor Outdoor
Indoor
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Location Rating
Damp
Long Description
Upgrade your compact fluorescent lighting with SATCO NUVO's S11555 3.5W Type B LED lamp. Designed to bypass the ballast for direct wiring to the electrical system, this lamp replaces 5W, 7W, and 9W CFL lamps with a 2G7 base. It offers 4 CCT selectable
Material
Polycarbonate (PC)
NSF Approved
No
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Upgrade your lighting with SATCO NUVO's energy-efficient Type B ballast bypass LED replacement lamps. These innovative lamps are available in multiple base options to suit your needs. The 3.5W model for 5/7/9W CFL lamps with a 2G7 base and the 5.5W mod
SDS class
LED_Lamp
Short Description
3.5W/LED/CFL/CCT/2G7/BP
Style
Transitional
Surge Protection
Built-in-surge protection - 0.5KV
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
20%
Wattage Selectable
No
Watts
3.5W
Manufactured By
Satco Products Inc.
Other Details:
- Country of Origin- China
Finish Family
Additional options that would change other selections
Call for Price
BASE PRICE:
$
13
29
/
/ 1
($13.29 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 1014 items available.
