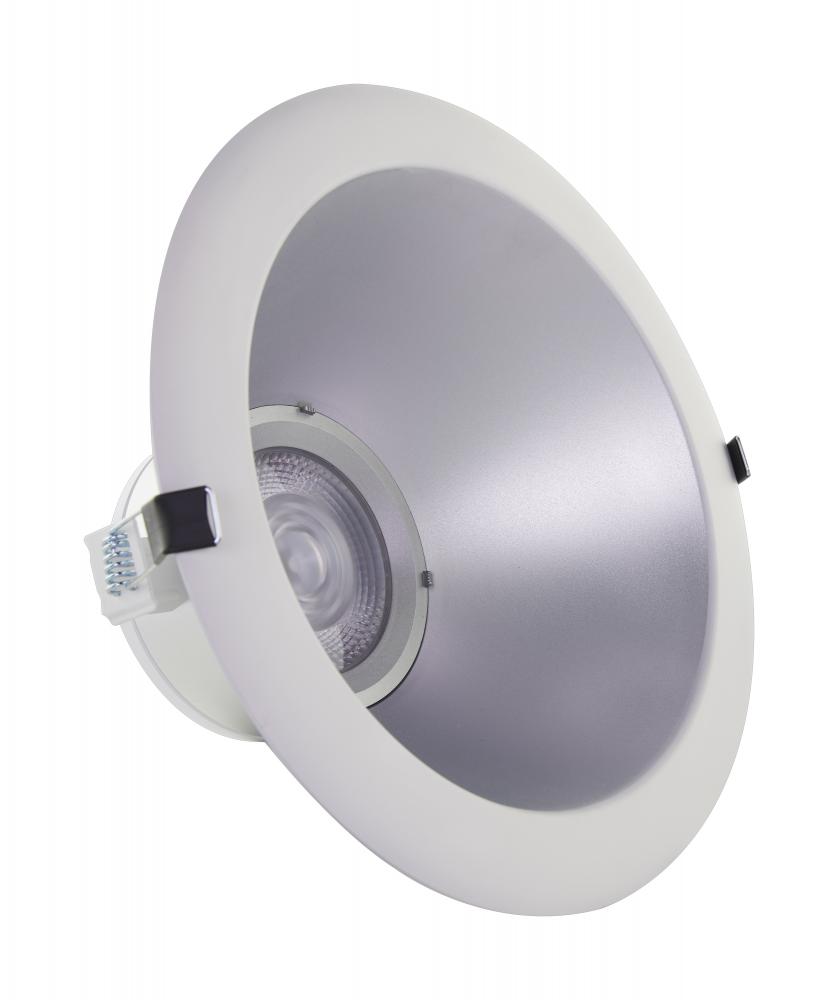

46 Watt Commercial LED Downlight; 10 in.; Color Adjustable; Lumen Adjustable; 120-277 volt (S11817)
by Satco Products Inc.
46 Watt Commercial LED Downlight; 10 in.; Color Adjustable; Lumen Adjustable; 120-277 volt
Product Specification
Item #
S11817
Dimensions
Height: 5.63"
Width: 11.30"
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
Silver
Style
Traditional
Option
LED
, Prop 65
Lumens
1601-2600
Kelvin
4001-4500
Category
Recessed
Sub Category
Commercial
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Diameter
11.3
Dimmable
Yes-Dimmable
Each Height
5.91
Each Length
11.81
Each Width
11.81
Lumens
2500L/3000L/3500L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - LED Commercial Downlights
Air Tight
No
Amps
0.275-0.119/0.333-0.144/0.383-0.166A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
40
CA Prop-65
Lead
Can Size
10 in.
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Ceiling Aperture
10.00 in. Cutout
Connection
Direct Wired
Country Of Origin
China
CRI
80+
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
Each Cube
0.477
Each Quantity
1
Efficacy
75.76/75.00/76.09 LPW
FCC Compliant
Yes
Feature 1
Lawful for sale in California
Feature 2
Selectable wattage, lumens, and CCT
Feature 3
Remote driver and J-box with knockouts
Feature 4
Quick connect feature for easy installation
Feature 5
5 year limited warranty
Finish Family
Silver
Fixture shape
Round
Flr Equiv
2 x 26W CFL
Has Driver
Yes
Has Emergency Battery
No
IC Rated
Yes
Incandescent Equivalent
150W/200W/250W
Indoor Outdoor
Indoor
Installation Notes
Can be installed with or without the rough-in plate (80-959)
JA8 Compliant
No
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Long Description
Satco's S11817 wattage selectable, 10 inch LED commercial downlight is the perfect solution for offices, stores, hospitals, and hotels. Dimmable and CCT selectable, this direct wired downlight installs easily even in the most challenging renovations an
Material
Aluminum
Mounting Procedure
Ceiling
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.98
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
This a commercial LED downlight with Color Quick technology: Select among a range of watts, lumens, and color temperatures. An outboard LED driver/junction box allows for easy placement, even in the most challenging renovations. The downlight mounts secure
Safety Listing
cETLus - Listed
SDS class
LED_Lamp
Short Description
46WLED/CDL/10/ADJ-CCT/40D
Specification Notes
Default CCT setting is 3000K. Default wattage setting is 46W.
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Trim Color
White
Wattage Selectable
Yes
Weight Lb.
2.97
Manufactured By
Satco Products Inc.
Finish
Additional options that would change other selections
Recommended Items
Call for Price
BASE PRICE:
$
212
29
/
/ 1
($212.29 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 232 items available.
