8/12 Watt LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 4 Inch; Round; Flat Face;

Image may not reflect selected features

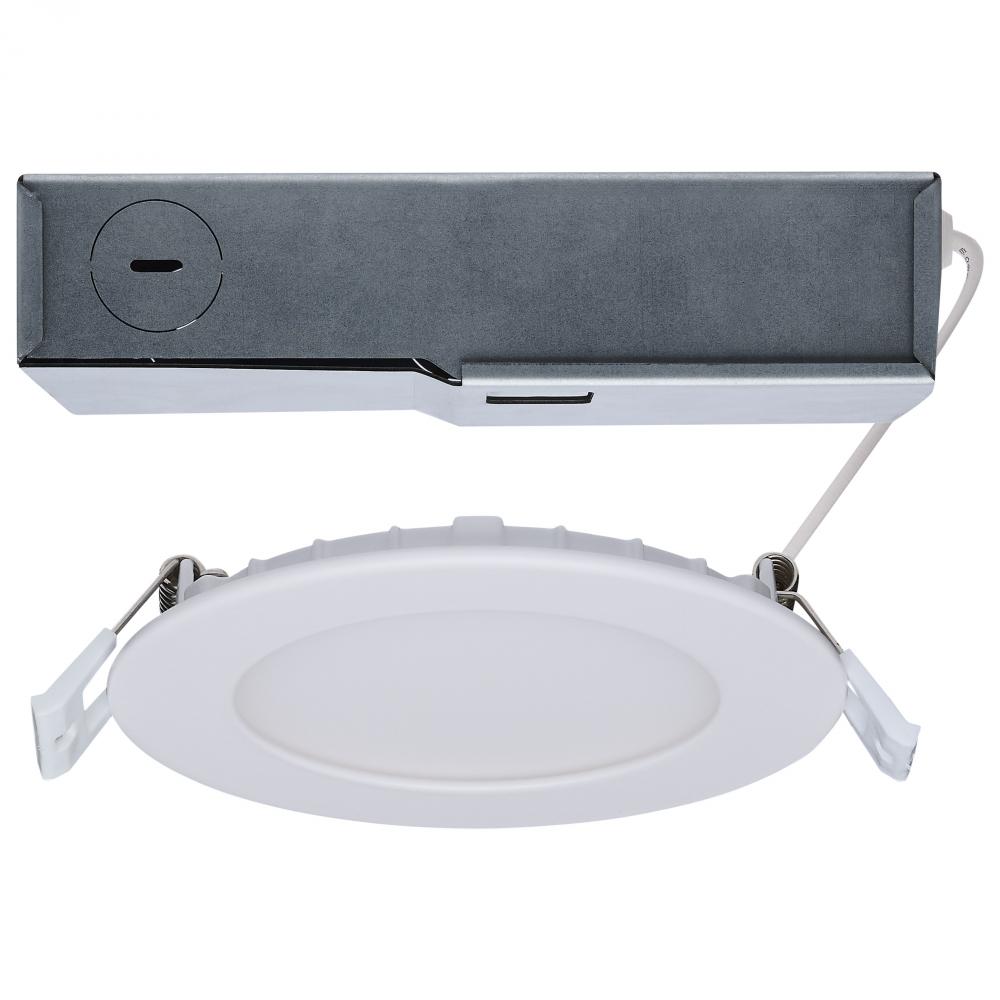

8/12 Watt LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 4 Inch; Round; Flat Face; (S11690) by Satco Products Inc.

8/12 Watt LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 4 Inch; Round; Flat Face; White Finish; 120-277 Volt; Dual Dimming

Product Specification

Item #

S11690

Dimensions

Height: 1.34"

Width: 4.72"

Additional product details

Option

Energy Star , LED , Prop 65

Category

Recessed

Sub Category

Direct Wire

Style

Utility

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm White to Natural Light

Diameter

4.72

Dimmable

Yes-Dimmable

Each Height

6.89

Each Length

5.08

Each Width

2.48

Lumens

720L/1000L

Tariff Code

9405.11.6010

Warranty

5 Year Limited - Fixtures

Air Tight

Yes

Amps

0.067-0.029/0.100-0.043A

ANSI Base

Integrated

Beam Angle

108

CA Prop-65

Lead

CCT Selectable

Yes

CEC

California T24 2016 - 2022 JA8 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Ceiling Aperture

4.25 in. Cutout

Closet Rated

Yes

Connection

Direct Wired

Country Of Origin

Vietnam

CRI

90+

Dimmable Down To

100 to 10 percent

Dimmable Function

Triac at 120V / 0-10V at 120-277V

Dimming Type

Dual Dimming

Each Cube

0.0502

Each Quantity

Efficacy

90.00/83.33 LPW

ES Category

Downlight Recessed

ES Unique ID

ESID-3994344

FCC Compliant

Yes

Feature 1

Wattage Selectable for High & Very High Outputs

Feature 10

5 Year Warranty

Feature 2

5 CCT Selectable from Warm to Natural Light

Feature 3

Flat Face Design for Reduced Glare

Feature 4

NEC Compliant Junction Box

Feature 5

Dual Dimming

Feature 6

FT6 Cable for Commercial Plenums

Feature 7

90 CRI

Feature 8

Wet Location Rated

Feature 9

50,000 Hour Functional Life

Finish Family

White

Fixture shape

Round

IC Rated

Yes

Incandescent Equivalent

75W

Indoor Outdoor

Indoor and Outdoor

Installation Notes

Plenum Rated FT6 Cable

JA8 Compliant

Yes

Lens Finish

Matte Frosted

Lens Material

Acrylic

Long Description

The SATCO NUVO Pro Series LED Slimfit Downlights offer exceptional versatility and performance. The S11690 4-inch round model features field-selectable five CCT and two wattage options (8W/12W), delivering both high output (HO) and very high output (VHO) i

Material

Aluminum

Mounting Diameter

4.25

Mounting Height

3.43

NEC Compliance

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Operating Frequency

60Hz

Operating Temp

-20C (-4F) to +40C (+104F)

Order In Multiples Of

Pack Type

Box

Power Factor

>0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

The SATCO NUVO Pro Series LED Slimfit Downlights offer exceptional versatility and performance. Featuring field-selectable CCT and wattage technology, these downlights provide high output (HO) and very high output (VHO) options, ensuring bright, efficient

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

12WLED/DW/4/FS/RND/FL/DD

Sloped Ceiling Compatible

Yes

Specification Notes

Default CCT Setting: 2700K; Default Wattage Setting: 12W

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Exempt

Title 24 Compliant

Yes

Total Harmonic Distortion

<20%

Trim Material

Aluminum

Wattage Selectable

Yes

Weight Lb.

1.04

Manufactured By

Satco Products Inc.
